MIG10 System

Data logger and radio data logger system. Ideally suited to challenges in restoration, preventive conservation and climate recording.

Send request

Product Details

MIG10 System

Benefits

This is what makes our innovative product so unique.

Expandable and Customizable

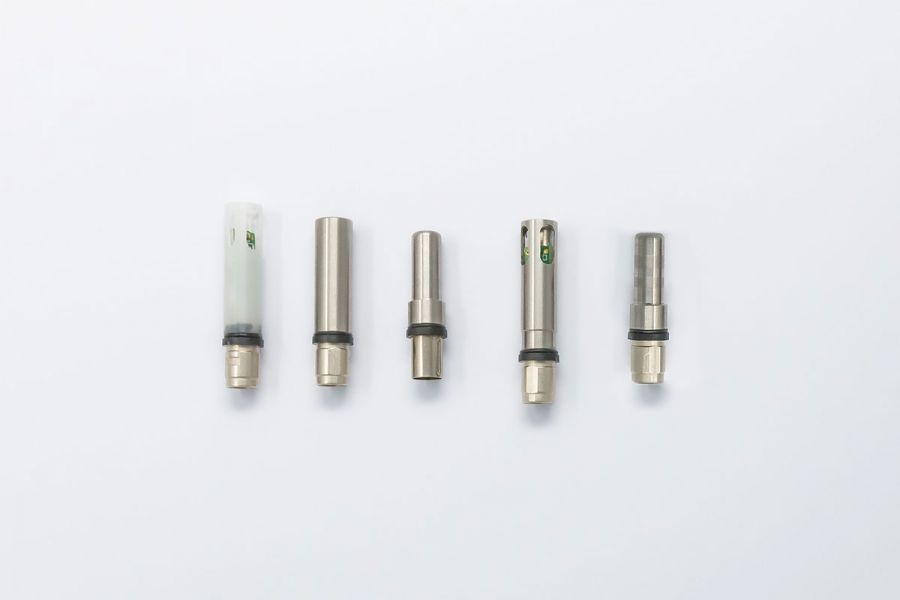

For the potential of up to 64 measurement points, you have the choice between wired or wireless sensors.

Premium Quality

Durable, stable, and sustainable. We offer you a replacement service when the desiccants are eventually depleted.

Easy to use

Easy installation without technical knowledge in just a few minutes.

Real-Time Visualization

The MIG10 system provides real-time data visualization when needed.

Made in Germany

Manufactured exclusively in Germany.

Technical Data

Housing
Dimensions (l x w x h)	86mm x 47mm x 34mm
Electrical Specifications
Power Supply Voltage	5 VDC via USB2C connector
Wireless Connections
Configuration and Data Retrieval	Wi-Fi, ClimateView 3D, ClimateView base

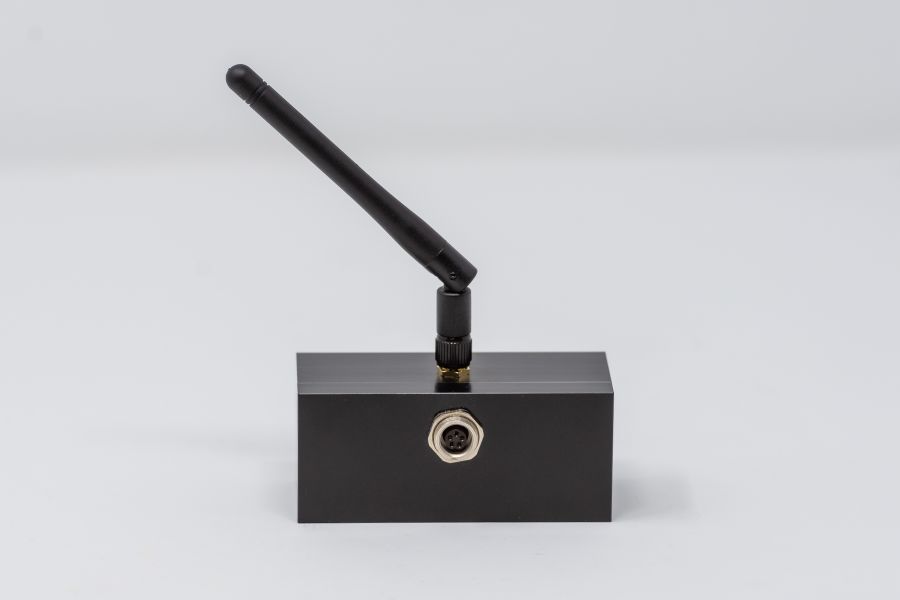

Connection to Wireless Sensors for Data Transmission	868MHz for wireless sensors
Measurement Modes
Wireless Connection via 868MHz Network	Up to 64 wireless participants
Individual Sensor	As a single logger
Measurement of Layers	Up to 254 measurement points with sensor distances from 10cm to 2m, more on request

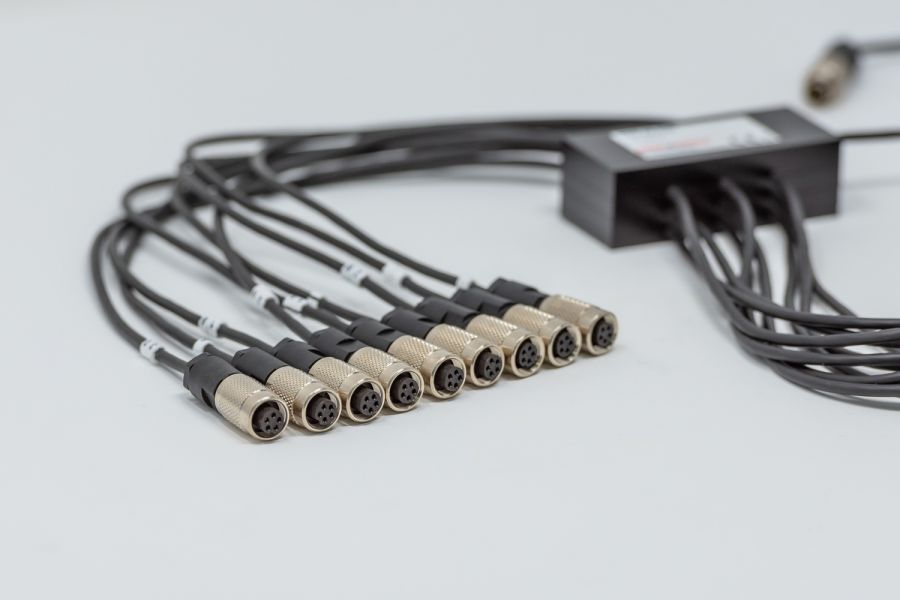

Multiplexer Connection	6 measurement points, 12 measurement points, 24 measurement points, 48 measurement points, up to a maximum of 254 measurement points
Display
Graphic Display	Relative Humidity, Temperature, Absolute Humidity

Quotation Request

MIG10 System

Please fill in your Company/Organization

Please fill in your title

Please fill in your full name

Please fill in your email address

Please fill in your address

Please fill in your town

Please let us know your name.

Please select the desired product

Please fill in your message

Please call me back for a personal consultation Invalid Input

I agree that my details from the form will be collected and processed to answer my request. Privacy policy Bitte akzeptieren Sie die Datenschutzerklärung.

Spam protection, please enter:

What is 11+8?

Invalid Input

FAQ - Frequently Asked Questions

Data logger - MIG10 System

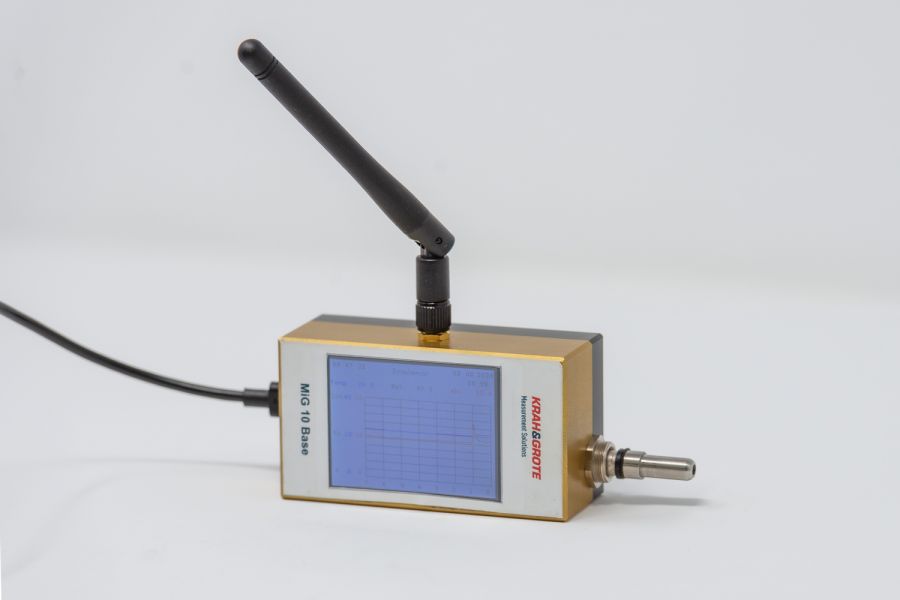

Does the MIG10 Base require continuous power?

The MIG10 Base requires continuous power. It can be powered by a power bank for 3-4 days, covering the usual times of power outages in historical buildings and museums.

Can I operate the MIG10 Base with wireless sensors?

Yes, the MIG10 system is designed to operate with both wireless sensors, up to 64 units, or wired sensors in a daisy-chain configuration for layer measurements, or wired through a hub, distributed as needed.

How do I access the measurement data from the MIG10 Base?

Data retrieval is done through a Wi-Fi connection using the ClimateView and ClimateView 3D software. Wi-Fi in the room is not required.

Can the data be read remotely as well?

Yes, that is possible. A dedicated interface is provided via a router.
