Microsensors

Our microsensors have been specifically designed for use in museums and preventive conservation.

Send request

Product Details

Microsensors

Benefits

This is what makes our innovative product so unique.

Smallest Design

Due to their compact design and optical customization upon customer request, our sensors are nearly invisible.

Highest Precision

Through a special manufacturing process and stringent quality assurance, we ensure the highest level of precision.

Easy to use

Our sensors are plug-and-play and interchangeable with each other.

Applications

Our microsensors are used in display cases, measurements on objects, museum spaces, storage facilities, archives, historic buildings, and more.

Technical Data

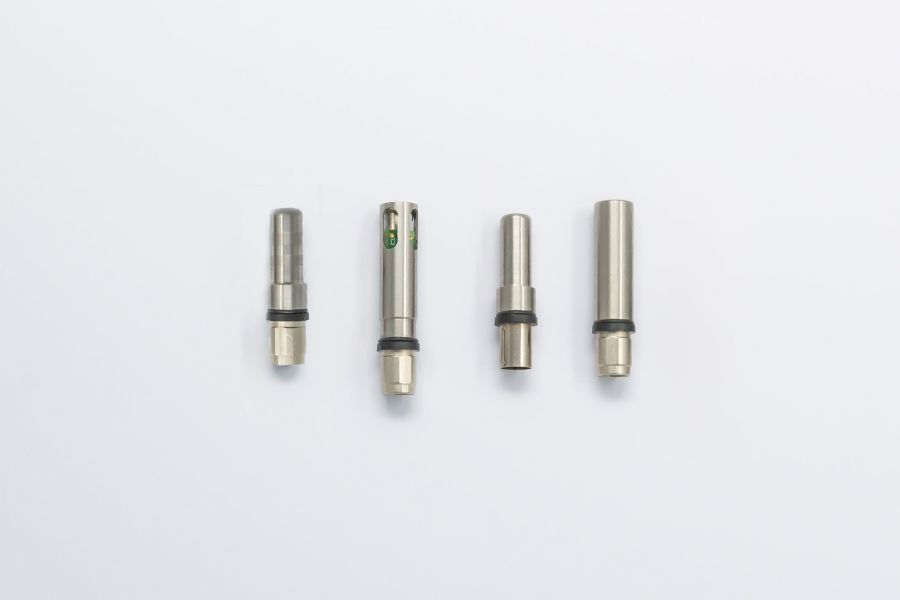

Microsensor TRF09tst
Dimensions	(6,5 x 22)mm
Housing	Plug-in
Measurement Parameters	Temperature and relative humidity
Relative Humidity
Measurement Range	0%RH to 100%RH
Accuracy at 25°C	+-2%
Temperature
Accuracy 5°C to 50°C	+-0,5°C
Microsensor TRF18tst with Highest Accuracy
Dimensions	(8 x 35)mm
Housing	Plug-in
Measurement Parameters	Temperature and relative humidity
Relative Humidity
Measurement Range	0%RH to 100%RH
Accuracy at 25°C	+-1.0%RH
Temperature
Measurement Range	-40°C to 125°C
Accuracy 5°C to 50°C	+-0.1°C

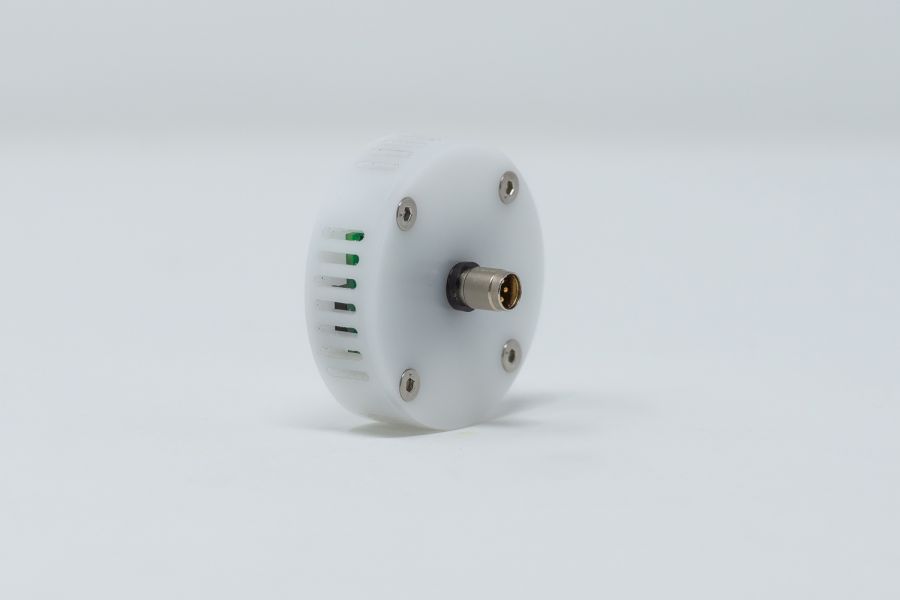

Miniature Sensor TRFKDtst
Dimensions	(50x26)mm
Housing	Plug-in
Measurement Parameters	Temperatur, relative Feuchte und Kohlendioxid
Relative Feuchte
Measurement Range	0%RH to 100%RH
Accuracy at 25°C 0-100%RH	+-3%
Temperature
Measurement Range	-40°C to 70°C
Accuracy 0-50°C	+-(0.4°C + 0.023 x (T[°C]-25°C)
Carbon Dioxide (CO2)
Measurement Range	400ppm to 10000ppm
Accuracy 5°C to 50°C	± (30 ppm + 3%MV)
VOCtst
Dimensions	(8 x 35)mm
Housing	Plug-in
Measurement Parameters	VOC
Total Volatile Organic Compounds (VOC) Measurement Range (Ethanol equivalent)	0 to 1000ppm
Reproducibility	< +-5

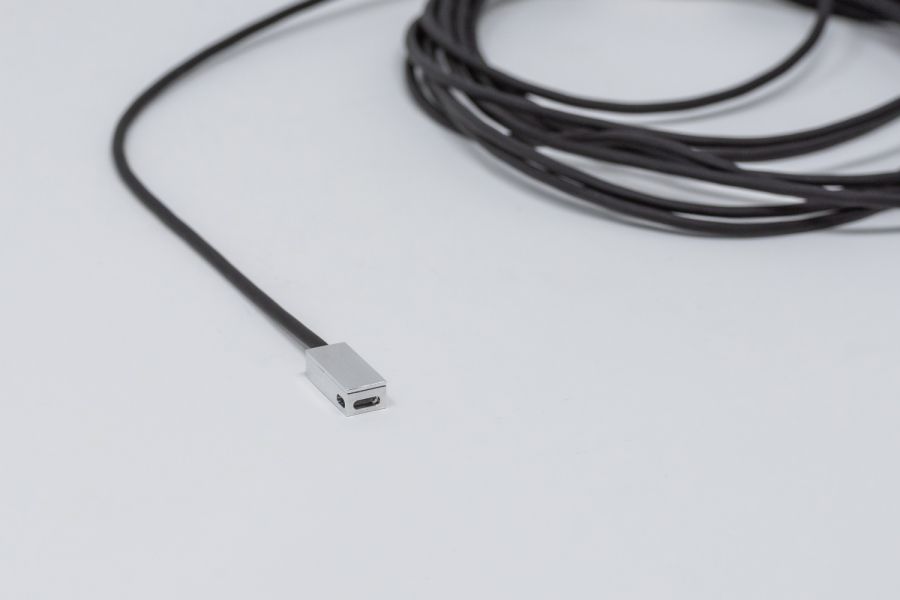

Surface Climate Sensor OTRF
Dimensions	(20mm x 10mm x 6mm)
Housing	Plug-in
Measurement Parameters	Temperature and relative humidity
Relative Humidity
Measurement Range	0%RH to 100%RH
Accuracy at 25°C	+-2%
Temperature
Accuracy 5°C to 50°C	+-0,5°C

Quotation Request

Microsensors

Please fill in your Company/Organization

Please fill in your title

Please fill in your full name

Please fill in your email address

Please fill in your address

Please fill in your town

Please let us know your name.

Please select the desired product

Please fill in your message

Please call me back for a personal consultation Invalid Input

I agree that my details from the form will be collected and processed to answer my request. Privacy policy Bitte akzeptieren Sie die Datenschutzerklärung.

Spam protection, please enter:

What is 11+8?

Invalid Input

FAQ - Frequently Asked Questions

Microsensors

How often do the sensors need to be calibrated?

Depends on the operating conditions. In the museum climate with values around 50%rH and temperatures around 20°C, an annual check is sufficient. If used outdoors or in high humidity areas, a six-monthly inspection may be necessary. This depends on the requirements for the precision of the measurement.

Can the sensors be calibrated?

The sensors are checked in our calibration chamber and if there are deviations > Specification replaced by new sensor elements. Another option is to measure using the CanMeleon 2.0 or CanMeleon Compact. Here it is possible to compensate for smaller deviations.

Are the sensors interchangeable?

Yes, the sensors are interchangeable.

How long can the sensors be used?

Depending on the location and environmental conditions from 10 years to approx. 25 years

Are the sensors available in different designs or colors?

Yes, the sensors are available in a wide variety of designs. Depending on the needs of the area of use, the sensors can be made of different colors and materials.
