Adsorptionsbox (ADSB01)

The adsorption box (ADSB01) was developed for the combined use of pollutant reduction and moisture stabilization in showcases.

Send request

It's as Simple as That

Our product explained in the video.

Product Details

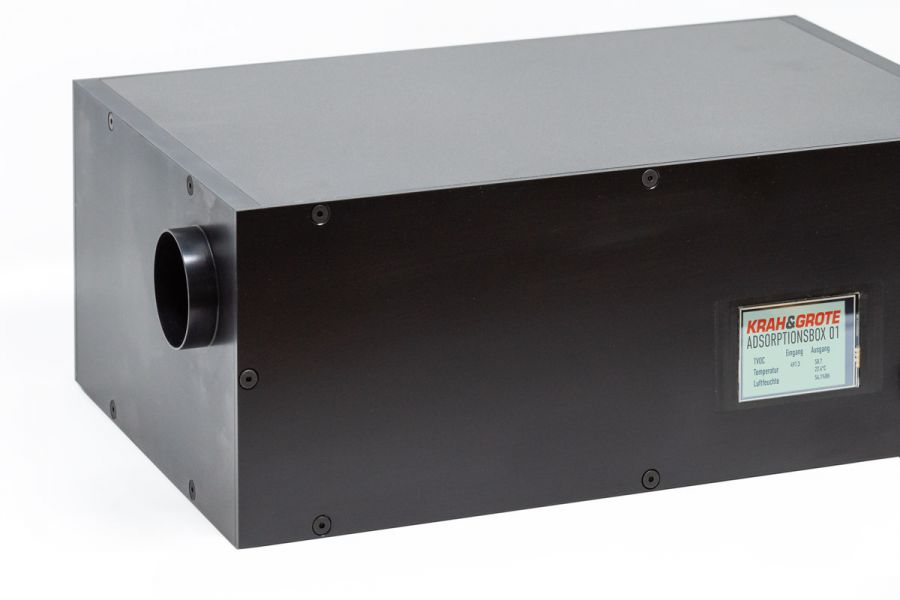

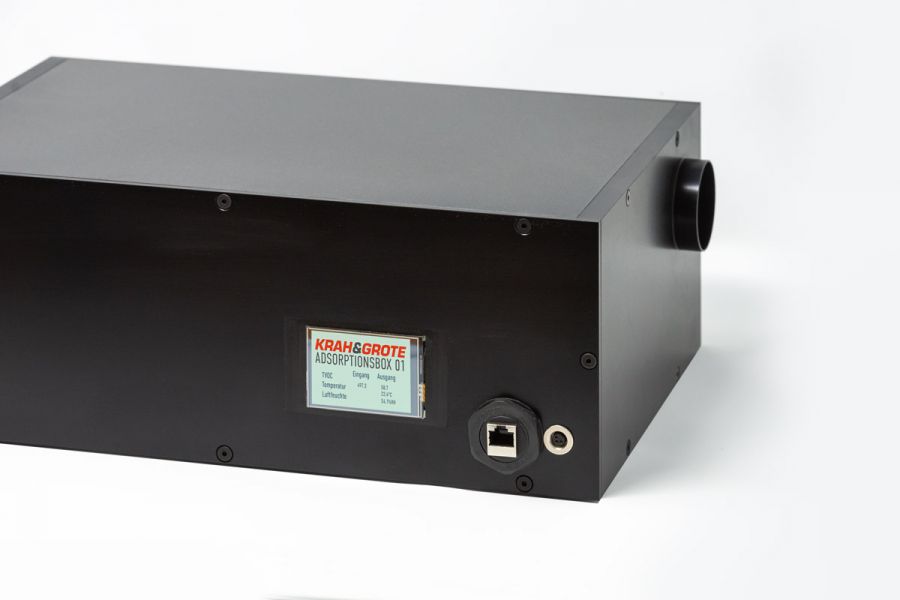

Adsorptionsbox (ADSB01)

Benefits

This is what makes our innovative product so unique.

2-in-1 Product

Designed for the combined use of pollutant reduction and humidity stabilization in display cases..

Values Available at Any Time

Measurement values can be accessed at any time in connection with the CanMeleon Compact.

Expandable and Customizable

In combination with the CanMeleon Compact, you can expand your monitoring system by connecting up to 254 extra measurement points.

Premium Quality

Durable, stable, and sustainable. We offer you an exchange service for the regeneration of your desiccants.

Easy to Use

Easy installation without technical knowledge in just a few minutes.

Clever Extensions

Compatible and expandable with many other Krah & Grote products, making it customizable for various applications.

Made in Germany

Manufactured exclusively in Germany.

User Friendly

User-friendly an quick to use

Technical Data

Housing
Material	Anodized Aluminum
Dimensions (l x w x h)	35cm x 22cm x 14cm
Electrical Specifications
Power Supply Voltage	5 to 12V DC
Power Consumption	500mA
Air Connections
Hose Connections (diameter)	50mm
Interfaces
Type	CAN Bosch 2.0
Display
Graphic Display	Relative Humidity, Temperature, VOC Input, VOC Output
Air Volume
Three-stage free blowing	9 / 5 / 3m³/ hr.

Quotation Request

Adsorptionsbox (ADSB01)

Please fill in your Company/Organization

Please fill in your title

Please fill in your full name

Please fill in your email address

Please fill in your address

Please fill in your town

Please let us know your name.

Please select the desired product

Please fill in your message

Please call me back for a personal consultation Invalid Input

I agree that my details from the form will be collected and processed to answer my request. Privacy policy Bitte akzeptieren Sie die Datenschutzerklärung.

Spam protection, please enter:

What is 11+8?

Invalid Input

FAQ - Frequently Asked Questions

Adsorptionsbox (ADSB01)

Can I operate the ADSB with activated carbon only?

Yes, the ADSB can be operated with activated carbon, other adsorption materials, or with conditioning salts, solutions.

How often do I need to replace the activated carbon?

This essentially depends on the pollutant load that occurs.

Can I set a fixed moisture value?

This is possible. There is an additional unit with the help of which precise moisture values can be achieved.

Do I have control over when the conditioning unit is depleted?

In combination with the CanMeleon Compact / CanMeleon 2.0, threshold values can be set which in turn trigger an alarm email. This allows for continuous monitoring.
