Controller BT05/BT06

Our humidity controller BT05 and the climate controller BT06 are the core components of our switch cabinets KEB05 and KIB06.

The range of applications extends from simple cellar and storage ventilations (KEB05) to complex systems in churches and museums (KIB06). By exploiting natural climate fluctuations, spaces can be humidified and dehumidified. This creates a more stable indoor climate and prevents moisture and dryness damage. The control (KIB06) of wall tempering and heating systems is also possible.

Product Details

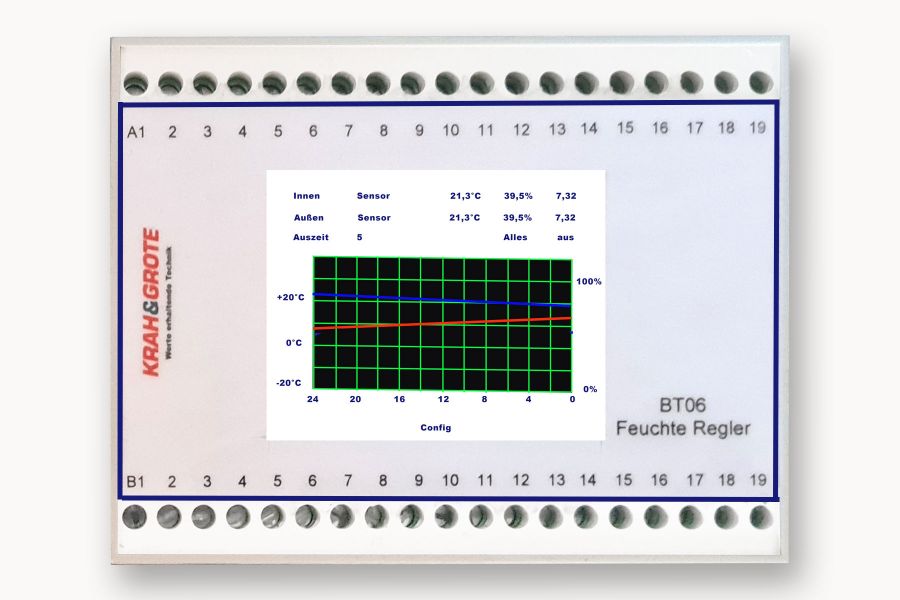

humidity controller BT05 and climate controller BT06

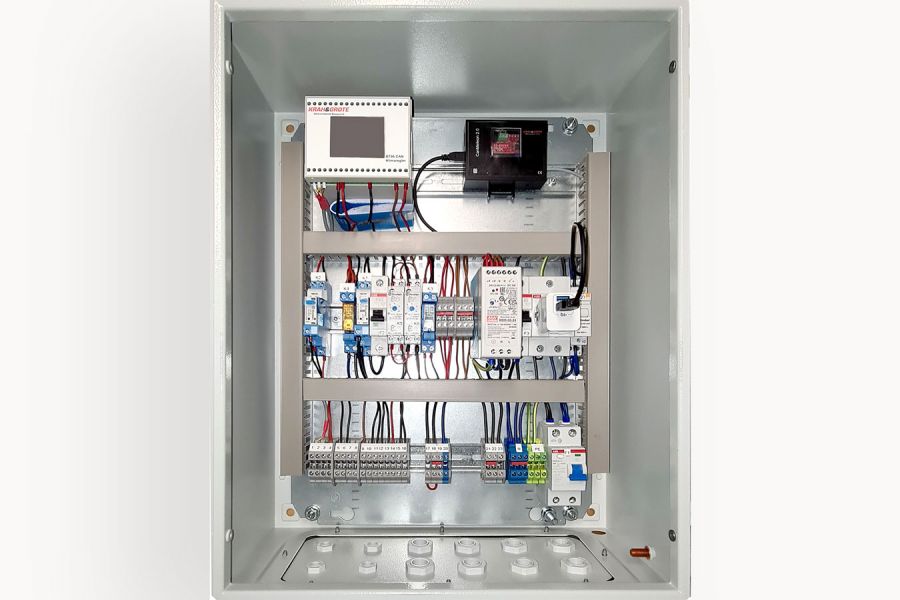

Krah&Grote switch cabinets
Controller BT05/BT06

Benefits

This is what makes our innovative product so unique.

Energy-saving

Highly energy-efficient by exploiting natural climate fluctuations.

Easily expandable

Easily expandable for conservating heating.

Combinable

Can be combined with remote data transmission and monitoring (CanMeleon).

Automatic operation

Automatic operation with additional, optional features such as 2-hour breaks, burst ventilation, and much more.

Protection against mold

Prevents mold and microbiological growth.

Protection against salt damage

Used in many cases to prevent salt damage.

Technical Data

BT 05 Humidity Controller

Dimensions

76mm x 100mm x 110mm

Housing

DIN rail housing

Display

Illuminated 4-line display

Adjustment Options

Target relative humidity, minimum temperature, maximum temperature, absolute humidity difference, waiting time

Inputs

2 combination sensors for relative humidity and temperature as reference and indoor sensors

Power Supply

12-24V DC

KEB05 Humidity Controller

Dimensions

133mm x 148mm x 300mm

Housing

Flush-mounted / Surface-mounted housing

Display

Illuminated 4-line display

Adjustment Options

Target relative humidity, minimum temperature, maximum temperature, absolute humidity difference, waiting time

Inputs

2 combination sensors for relative humidity and temperature as reference and indoor sensors

Outputs

Switch outputs 230V 6A

Power Supply

230VAC 50Hz

BT 06 Climate Controller

Dimensions

76mm x 100mm x 110mm

Housing

DIN rail housing

Display

Graphic display with trend graph

Adjustment Options

Target relative humidity, minimum temperature, maximum temperature, absolute humidity difference, waiting time

Inputs

CAN-Bus, I²C, Radio 868MHz

Outputs

3 switch outputs, ventilation, dehumidification, humidification

Power Supply

12-24VDC

KIB06 Climate Controller

Dimensions

220mm x 400mm x 500mm

Housing

Steel cabinet IP54

Display

Graphic display with trend graph

Adjustment Options

Target relative humidity, minimum temperature, maximum temperature, absolute humidity difference, waiting time

Inputs

CAN-Bus, I²C, Radio 868MHz

Outputs

3 switch outputs, ventilation, dehumidification, humidification

Power Supply

230VAC 50Hz / 400VAC

Data Storage, Alerts, Display

ClimateCenter

Connections

Flow monitor, rain sensor, wind sensor, contactors for heating register, time relay switch, motion detector, smoke detector

Quotation Request

Controller BT05/BT06

Please fill in your Company/Organization
Please fill in your title
Please fill in your full name
Please fill in your email address
Please fill in your email address
Please fill in your address
Please fill in your town
Please let us know your name.


Please select the desired product

Bitte wählen Sie die gewünschte Service-Leistung
Please fill in your message
Invalid Input
Bitte akzeptieren Sie die Datenschutzerklärung.

Spam protection, please enter:

What is 11+8?

Invalid Input

FAQ - Frequently Asked Questions

Humidity Controller BT05 &
Climate Controller BT06

Can the data also be read remotely?

Yes, that is possible. The controller can be expanded with the CanMeleon remote data monitoring.

Can the measurement values also be transmitted to the controller via radio?

Yes, this is implemented in the system. Sensors for regulation can be selected.

Is it possible to set up the entire system via a radio network?

In principle, the entire system can be based on radio technology. Especially in historic buildings, cable routing can be very challenging. Here, we have unlimited possibilities with the help of the BT06 climate controller and the necessary components to set up complex control and measurement systems.

Can the system also humidify, or is it only designed for dehumidification?

The BT06 system can both dehumidify and humidify.
